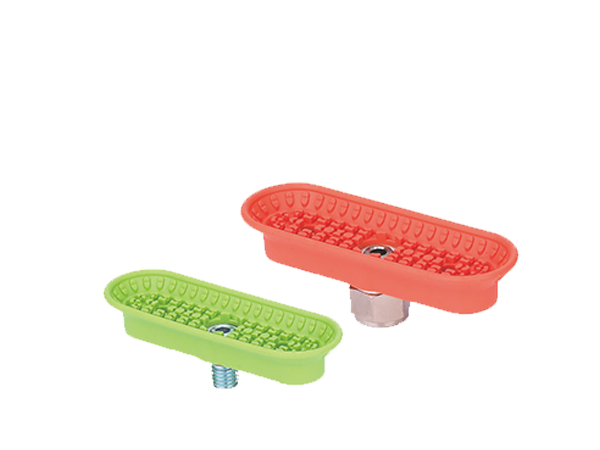

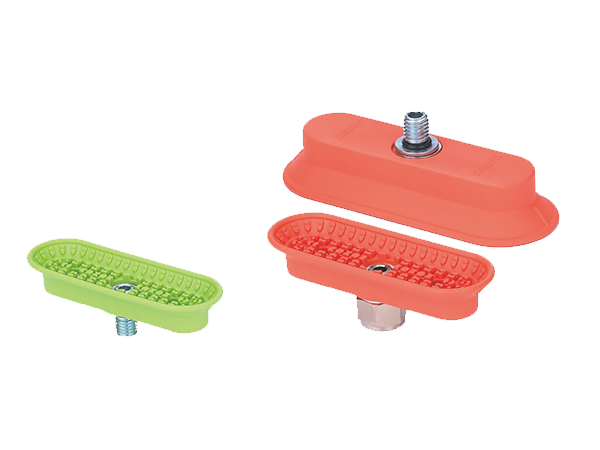

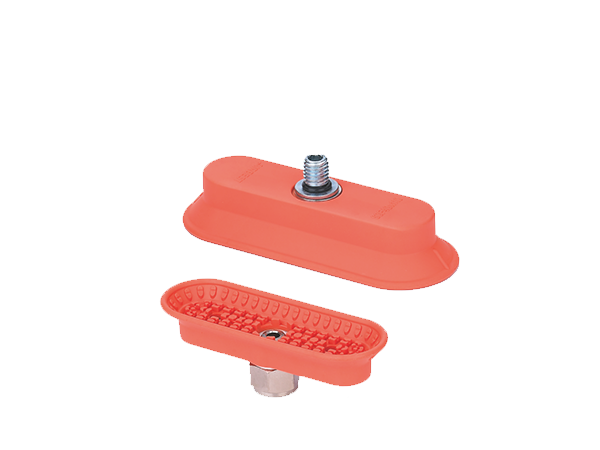

Features
◇ Large inner support structure protects the sheet metal from deformation and damage during the handling process.
◇ Slot structure efficiently improves the friction force between suction cup and workpiece in order to prevent
the oily sheet metal from slipping during the handling process.
◇ Oval suction cup is suitable for long and narrow workpieces.
◇ 2 types hardness of material for option(45 & 60),suitable for metal sheet with different thickness and shapes.
Applications
◇ Car stamped steel plate, oily steel plate
◇ Long and thin workpiece

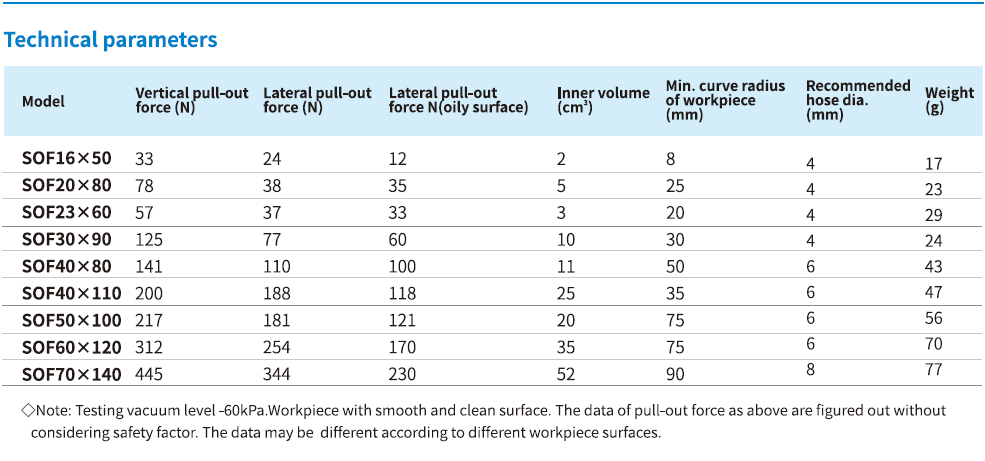

| How to order | |||||
| SOF 16×50 N -G2F ① ② ③ ④ | |||||
| ① Series | ② Diameter | ③ Material & Hardness | ④ Connection thread | ||
| SOF | 16×50 20×80 23×60 30×90 40×80 | 40×110 50×100 60×120 70×140 | N - NBR NG - NBR | G2F- Gl/4 Female thread G2M - Gl/4 Male thread G3F - G3/8 Female thread M10M - M10 Male thread M14M - M14X 1.5 Male thread RA - Rectangular adapter | |
| Selection | ||||||
| Model/ Connection thread | G2F | G2M | G3F | M10M | M14M | RA |
| SOF16×50 | ○ | ○ | ● | ○ | ○ | ○ |
| SOF23×60 | ○ | ○ | ● | ○ | ○ | ○ |
| SOF20×80 | ○ | ○ | ● | ○ | ○ | ○ |
| SOF30×90 | ○ | ○ | ● | ○ | ○ | ○ |
| SOF60×120 | ● | ○ | ● | ○ | ○ | ○ |
| SOF40×80 | ● | ○ | ○ | ○ | ○ | ○ |
| SOF40×110 | ● | ○ | ○ | ○ | ○ | ○ |
| SOF50×100 | ● | ○ | ○ | ○ | ○ | ○ |
| SOF70×140 | ● | ○ | ○ | ○ | ○ | ○ |

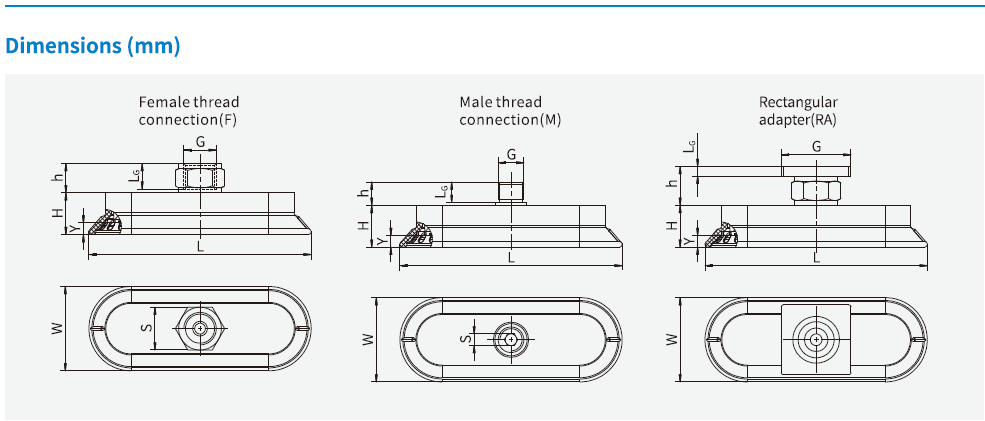

| Model/Size | L | W | H | G | LG | h | S | Y |
| SOF16×50-G2F | 50 | 16 | 19.5 | G1/4 | 11 | 14 | 17 | 3 |
| SOF16×50-G2M | 50 | 16 | 19.5 | G1/4 | 12 | 13.5 | 5 | 3 |
| SOF16×50-G3F | 50 | 16 | 19.5 | G3/8 | 11 | 14 | 22 | 3 |
| SOF16×50-M10M | 50 | 16 | 19.5 | M10 | 12 | 13.5 | 5 | 3 |
| SOF16×50-M14M | 50 | 16 | 19.5 | M14×1.5 | 12 | 13.5 | 5 | 3 |
| SOF16×50-RA | 50 | 16 | 19.5 | □32 | 4.7 | 18.7 | - | 3 |
| SOF20×80-G2F | 84 | 24 | 15.5 | G1/4 | 11 | 14 | 17 | 5 |
| SOF20×80-G2M | 84 | 24 | 15.5 | G1/4 | 12 | 13.5 | 5 | 5 |
| SOF20×80-G3F | 84 | 24 | 15.5 | G3/8 | 11 | 14 | 22 | 5 |
| SOF20×80-M10M | 84 | 24 | 15.5 | M10 | 12 | 13.5 | 5 | 5 |
| SOF20×80-M14M | 84 | 24 | 15.5 | M14×1.5 | 12 | 13.5 | 5 | 5 |
| SOF20×80-RA | 84 | 24 | 15.5 | □32 | 4.7 | 18.7 | - | 5 |
| SOF23×60-G2F | 62 | 25 | 12 | G1/4 | 11 | 14 | 17 | 3 |
| SOF23×60-G2M | 62 | 25 | 12 | G1/4 | 12 | 13.5 | 5 | 3 |
| SOF23×60-G3F | 62 | 25 | 12 | G3/8 | 11 | 14 | 22 | 3 |
| SOF23×60-M10M | 62 | 25 | 12 | M10 | 12 | 13.5 | 5 | 3 |
| SOF23×60-M14M | 62 | 25 | 12 | M14×1.5 | 12 | 13.5 | 5 | 3 |
| SOF23×60-RA | 62 | 25 | 12 | □32 | 4.7 | 18.7 | - | 3 |
| SOF30×90-G2F | 93 | 33 | 16 | G1/4 | 11 | 14 | 17 | 5 |
| SOF30×90-G2M | 93 | 33 | 16 | G1/4 | 12 | 13.5 | 5 | 5 |
| SOF30×90-G3F | 93 | 33 | 16 | G3/8 | 11 | 14 | 22 | 5 |
| SOF30×90-M10M | 93 | 33 | 16 | M10 | 12 | 13.5 | 5 | 5 |
| SOF30×90-M14M | 93 | 33 | 16 | M14×1.5 | 12 | 13.5 | 5 | 5 |
| SOF30×90-RA | 93 | 33 | 16 | □32 | 4.7 | 18.7 | - | 5 |
| SOF40×80-G2F | 82 | 43 | 14 | G1/4 | 11 | 14 | 17 | 4 |
| SOF40×80-G2M | 82 | 43 | 14 | G1/4 | 12 | 13.5 | 5 | 4 |
| SOF40×80-G3F | 82 | 43 | 14 | G3/8 | 11 | 14 | 22 | 4 |
| SOF40×80-M10M | 82 | 43 | 14 | M10 | 12 | 13.5 | 5 | 4 |
| SOF40×80-M14M | 82 | 43 | 14 | M14×1.5 | 12 | 13.5 | 5 | 4 |
| SOF40×80-RA | 82 | 43 | 14 | □32 | 4.7 | 18.7 | - | 4 |
| SOF40×110-G2F | 113 | 43 | 21.5 | G1/4 | 11 | 14 | 17 | 6 |
| SOF40×110-G2M | 113 | 43 | 21.5 | G1/4 | 12 | 13.5 | 5 | 6 |
| SOF40×110-G3F | 113 | 43 | 21.5 | G3/8 | 11 | 14 | 22 | 6 |
| SOF40×110-M10M | 113 | 43 | 21.5 | M10 | 12 | 13.5 | 5 | 6 |
| SOF40×110-M14M | 113 | 43 | 21.5 | M14×1.5 | 12 | 13.5 | 5 | 6 |
| SOF40×110-RA | 113 | 43 | 21.5 | □32 | 4.7 | 18.7 | - | 6 |
| SOF50×100-G2F | 103 | 54 | 16 | G1/4 | 11 | 14 | 17 | 5 |
| SOF50×100-G2M | 103 | 54 | 16 | G1/4 | 12 | 13.5 | 5 | 5 |
| SOF50×100-G3F | 103 | 54 | 16 | G3/8 | 11 | 14 | 22 | 5 |
| SOF50×100-M10M | 103 | 54 | 16 | M10 | 12 | 13.5 | 5 | 5 |
| SOF50×100-M14M | 103 | 54 | 16 | M14×1.5 | 12 | 13.5 | 5 | 5 |
| SOF50×100-RA | 103 | 54 | 16 | □32 | 4.7 | 18.7 | - | 5 |
| SOF60×120-G2F | 123 | 65 | 18 | G1/4 | 11 | 14 | 17 | 6 |
| SOF60×120-G2M | 123 | 65 | 18 | G1/4 | 12 | 13.5 | 5 | 6 |
| SOF60×120-G3F | 123 | 65 | 18 | G3/8 | 11 | 14 | 22 | 6 |
| SOF60×120-M10M | 123 | 65 | 18 | M10 | 12 | 13.5 | 5 | 6 |
| SOF60×120-M14M | 123 | 65 | 18 | M14×1.5 | 12 | 13.5 | 5 | 6 |
| SOF60×120-RA | 123 | 65 | 18 | □32 | 4.7 | 18.7 | - | 6 |
| SOF70×140-G2F | 143 | 76 | 19 | G1/4 | 11 | 14 | 17 | 7 |
| SOF70×140-G2M | 143 | 76 | 19 | G1/4 | 12 | 13.5 | 5 | 7 |
| SOF70×140-G3F | 143 | 76 | 19 | G3/8 | 11 | 14 | 22 | 7 |
| SOF70×140-M10M | 143 | 76 | 19 | M10 | 12 | 13.5 | 5 | 7 |
| SOF70×140-M14M | 143 | 76 | 19 | M14×1.5 | 12 | 13.5 | 5 | 7 |
| SOF70×140-RA | 143 | 76 | 19 | □32 | 4.7 | 18.7 | - | 7 |
